Getting Started

Before you can integrate and use Mobile ID OpenID Connect sign-in, the client on-boarding process must have been completed by Swisscom.

For the technical on-boarding, you will be asked to provide Swisscom with the following information:

What	Quick Description	Ref.
Client Display Name	Your client's name, which is displayed by the authorization server. Example value: iDemo Online Shop
Redirect URI(s)	Redirection URI(s) to which the response will be sent. Note that TLS (https) is always required and the localhost URI is not allowed. Example value: https://app01.idemo-company.ch/oauth2/authresp https://app02.idemo-company.ch/oauth2/authresp	OIDC spec
Default ACR	Your default ACR. Must be a value that is available for your selected Mobile ID contract. Example value: mid_al3_any	Section Auth Code Request
Client Auth Mode	Your client's authentication method, either basic or post. Example value: client_secret_post	Section Access Token Request
Always Prompt For Consent	The Mobile ID server default behavior is to skip the consent step, provided such is already recorded for the given end-user and client. Default: false
MFA Number Matching	Enable MFA number matching feature for Mobile ID SIM and Mobile ID App authentication. When a user responds to an MFA notification using Mobile ID SIM or Mobile ID App, they'll be presented with a number on their mobile. They need to select that number in the sign-in prompt to complete the approval. Default: false	Video
LDAP Settings	Optional. Mobile ID server can connect to an LDAP(S) to validate user credentials and/or retrieve user attributes from the LDAP, such as: - MFA mobile number attribute - Mobile ID Serialnumber attribute (required for ACR mid_al4) - User password attribute
CNAME Record	Optional. Mobile ID server can use a custom domain instead of the default m.mobileid.ch. Custom Domains are only relevant if prompt=login is used. We will need your record name (e.g. mobileid.acme.com) that routes the traffic to m.mobileid.ch.

You will get a unique OIDC client identifier and client secret from Swisscom. If you did not receive your client credentials, it means that your on-boarding process is not finished yet.

TIP

Check the state with your commercial contact or via Backoffice.Security@swisscom.com.

Endpoint URIs

A default Mobile ID OpenID Provider configuration is published on the OIDC discovery endpoint, which allows a client to discover the OAuth 2.0 and OpenID Connect endpoints, capabilities, supported cryptographic algorithms and features.

INFO

It is recommended to host a local copy of the discovery document when your application relies on constant availability of this endpoint data.

Endpoint	URL
Discovery	https://openid.mobileid.ch/.well-known/openid-configuration

Additional Endpoint URIs:

Endpoint	URL
Authorization	https://m.mobileid.ch/oidc/authorize
Token	https://openid.mobileid.ch/token
User Info	https://openid.mobileid.ch/userinfo
Pushed Authorization Requests	https://openid.mobileid.ch/par

Authorization Code Request

The authorization code can be obtained by performing a simple HTTP GET request towards the Authorization endpoint of the Mobile ID OP. The client secret is not involved yet.

Endpoint	URL
Authorization	https://m.mobileid.ch/oidc/authorize

The Relying Party may trigger the authorization code flow by calling the authorization link (including required request parameters), for example:

<a href="https://m.mobileid.ch/oidc/authorize?response_type=code&scope=openid&client_id=s6BhdRkqt3&state=af0ifjsldkj&redirect_uri=https%3A%2F%2Fcompany.ch%2Fcb" rel="noreferrer">MobileID-sign-in-button</a>

WARNING

For data privacy reasons, it is highly recommended that the Relying Party does not fill in the HTTP referrer header. Typically, the referrer header is populated with the address of the page where the request originated. The HTML hyperlinks should have the rel attribute set to noreferrer, as shown in the example above.

A button could look like this example:

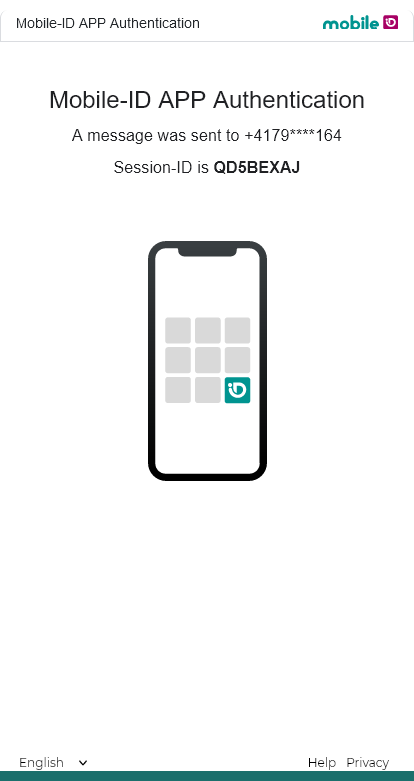

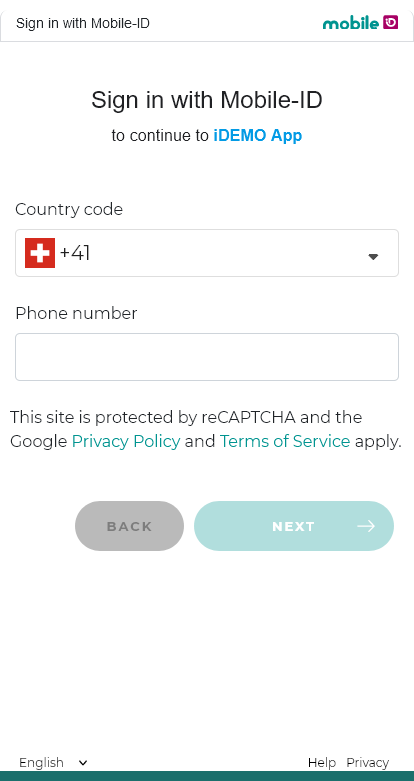

A click on the button will redirect the user to the mobileid.ch domain, where they can complete the authorization code flow. In the example screenshots below, the user enters the phone number, authenticates with the Mobile ID App and consents to the user information (phone number, current location) that was requested by the Relying Party "iDemo App". Finally, the user is redirected back to the Relying Party's domain.

The following request query string parameters are supported:

Parameter	Value	Remarks
scope	MUST contain the value openid	Optionally, the client may request additional scopes as specified in Scopes and Claims
response_type	MUST be the value code
client_id	MUST be your client ID
redirect_uri	MUST be (one of) your redirect URI(s)
state	MUST be an opaque value	Used to maintain state between the request and the callback
nonce	MUST be a nonce value
acr_values	CAN be set to overwrite the client's default ACR	Authentication Level (AL) required by the client (see ACR)
response_mode	SHALL NOT be used
display	SHALL NOT be used
prompt	CAN be set to login
max_age	SHALL NOT be used
ui_locales	CAN be set to provide the user's preferred language	Supported values are en, de, fr and it
id_token_hint	SHALL NOT be used
claims	SHALL NOT be used
login_hint	CAN be set to provide a login hint to the authorization server about the end-user's phone number(s) or LDAP username. Must be in a JSON format.	See Login Hint Examples below.
dtbd	CAN be set to overwrite the default authentication message displayed to the end-user if the authentication method is either Mobile ID SIM or Mobile ID App.	See DTBD Parameter below.

Login Hint Examples

Standard login hints:

{"enableManualInput": true, "hints": [{"msisdn":"+41765XXXXXX"}]}

{"enableManualInput": true, "hints": [{"msisdn":"+41765XXXXXX", "default":true}]}

{"enableManualInput": true, "hints": [{"msisdn":"+41765XXXXXX", "sn":"+574XXXXXX"}]}

{"enableManualInput": true, "hints": [{"msisdn":"+41765YYYYYY"},{"msisdn":"+41765XXXXXX", "default":true}]}

If an LDAP has been configured for your OIDC client, you can use the following login hints:

{"useLDAP": true, "hints": [{"userName":"johndoe"}]}

{"useLDAP": true, "hints": [{"userName":"john.doe@acme.com", "userPassword":"plain-secret", "isHashed": false}]}

{"useLDAP": true, "hints": [{"userName":"john.doe@acme.com", "userPassword":"hashed-secret", "isHashed": true}]}

You can use the following login hint in combination with the prompt=login parameter:

{"useLDAP": true}

If passkeys are enabled for your account, you can include the keyringId field in the login hint:

{"hints": [{"msisdn":"+41765XXXXXX", "keyringId":"MIDPKXXXXXXXXXX"}]}

INFO

The sn parameter is optional and only required for ACR mid_al4. The keyringId is required for mid_al4_passkey and mid_al4_any (when passkeys are enabled). See Passkey Authentication for details.

DTBD Parameter

The dtbd message should include these keywords:

• #SESSION# — A unique transaction number. In case MFA Number Matching is enabled, this keyword will be replaced with the matching number.
• #CLIENT# — Relying Party Display Name.

The default authentication message is:

Language	Message
English	Do you want to login to #CLIENT#? Transaction number #SESSION#
German	Möchten Sie sich bei #CLIENT# anmelden? Transaktion Nummer #SESSION#
French	Voulez-vous vous connecter à #CLIENT# ? Transaction numéro #SESSION#
Italian	Vuoi accedere a #CLIENT#? Transazione numero #SESSION#

Scopes and Claims

Given below is the list of supported scopes that can be requested during the authorization code request.

Scope	Claim	Type	Example Value	Description
openid	sub	string	3246d772d2edb208...	Subject identifier (unique, pairwise per client)
offline_access	—	—	—	Requests a refresh token
profile	name	string	+41791234567	User's display name
phone	phone_number	string	+41791234567	Phone number in E.164 format
	phone_number_verified	boolean	true	Whether the phone number has been verified
mid_location	mid_geo_accuracy	number	0	GPS accuracy in meters
	mid_geo_country	string	CH	ISO country code of the device
	mid_geo_device_confidence	number	1.0	Device confidence score
	mid_geo_location_confidence	number	1.0	Location confidence score
	mid_geo_timestamp	string	2022-03-17T05:49:03+01:00	Timestamp of the geolocation measurement
mid_profile	mid_profile_recovery_code_status	boolean	true	Whether a recovery code has been set
	mid_profile_serial	string	MIDCHEYUD1YE4QB1	Mobile ID serial number
	mid_pk_keyringid	string	MIDPK123A567B90	Passkey keyring identifier
	mid_profile_sim_status	string	active	SIM card activation status
	mid_profile_sim_pin_status	string	active	SIM PIN status
	mid_profile_sim_mcc	string	228	Mobile Country Code
	mid_profile_sim_mnc	string	01	Mobile Network Code
	mid_profile_sim_network	string	Swisscom	Mobile network operator name
	mid_profile_app_status	string	active	Mobile ID App activation status
	mid_profile_sscds	string	—	Secure signature creation device descriptor
	mid_profile_alias	string	John	User-defined alias
mid_cms	mid_cms_content	string	—	CMS signed data (Base64-encoded)
mid_esign_basic	mid_esign_basic_assurance_level	string	basic	E-signature assurance level
	mid_esign_basic_jurisdictions	string	CH	Applicable jurisdictions
	mid_esign_basic_has_valid_evidence	boolean	true	Whether valid identity evidence exists
mid_passkey	mid_pk_keyringid	string	MIDPK123A567B90	Passkey keyring identifier
	mid_pk_binding	string	device-bound | syncable	Whether the passkey is device-bound or synced
	mid_pk_cert_level	string	FIPS140-2 | CommonCriteria	Certification level of the authenticator
	mid_pk_created_ts	number	1717584000	Credential creation timestamp (Unix epoch)
	mid_pk_last_used_ts	number	1717591234	Last usage timestamp (Unix epoch)
	mid_pk_aaguid	string	2fc0579f-8113-...	FIDO MDS authenticator identifier
	mid_pk_cred_fingerprint	string	pQECAyYgASFY...	SHA-256 of the credential public key (COSE)
	mid_pk_auth_attachment	string	platform | cross-platform	Authenticator attachment modality
	mid_pk_os_family	string	iOS | Android | Windows	OS family of the authenticator platform

TIP

A Relying Party should always respect the user's privacy and keep the requested claims down to the very essential. For example, using scope openid only, the user sign-in will be anonymous. Neither the phone number nor any other user information will be passed on to the Relying Party's application.

Example claim values, retrieved from the UserInfo endpoint:

{
  "mid_geo_accuracy": 0,
  "mid_geo_country": "CH",
  "mid_geo_device_confidence": "1.0",
  "mid_geo_location_confidence": "1.0",
  "mid_geo_timestamp": "2022-03-17T05:49:03.597+01:00",
  "mid_profile_recovery_code_status": true,
  "mid_profile_serial": "MIDCHEYUD1YE4QB1",
  "name": "+41791234567",
  "phone_number": "+41791234567",
  "phone_number_verified": true,
  "sub": "3246d772d2edb20797fe9359cb3d07da6d01df7db2642e14554d241aef1d1d84"
}

Authentication Context Class Reference (ACR)

Below is an overview of all authentication means offered and supported by Mobile ID OP. The ACR can be requested with an authorization request parameter — or, if the request does not contain such parameter, the client's default ACR is selected.

An ACR can include one or several different authentication methods. The Mobile ID OP will check the user's authentication possibilities and will select an authentication method that complies with the ACR.

Included Excluded Included, if 'Passkeys' feature is enabled for the client account

acr_values	Authentication Method				Additional Checks		NIST-AAL3	Remarks
	SIM	App	OTP	Passkey	CH	KeyRing
mid_al2_any								Passkey-preferred, if passkeys_enabled:true for the client account. User can select a fallback method if Passkey Auth fails. Use this AL if UX is more important than security. Optional login_hint to provide MSISDN: {"enableManualInput": false, "hints": [{"msisdn":"+41765XXXXXX"}]}
mid_al3_any								See note [1]
mid_al3_any_ch
mid_al3_simcard
mid_al3_mobileapp
mid_al4_any								Passkey-preferred, if passkeys_enabled:true for the client account. User can select a fallback method if Passkey Auth fails. Use this AL if security is important and phishing risk is acceptable. RP must provide SN and KeyRingId (if Passkey is enabled) in login_hint: {"enableManualInput": false, "hints": [{"msisdn":"+41765XXXXXX", "sn":"+574XXXXXX", "keyringId":"MIDPKXXXXXXXXXX"}]}
mid_al4_any_ch
mid_al4_simcard
mid_al4_mobileapp
mid_al4_passkey								Passkey-only & phishing-resistant. Use this AL if security and phishing-resistance is important, with a trade-off that only Passkeys can be used. Optionally, this scenario may be used to comply with NIST AAL3, which requires the user to have a FIPS 140-2 certified authenticator (passkey) registered. RP must provide KeyRingId in login_hint: {"hints": [{"msisdn":"+41765XXXXXX", "keyringId":"MIDPKXXXXXXXXXX"}]}

[1] Passkeys are only supported with AL2 or AL4. There is no support for Passkeys with AL3. See Passkey Authentication for detailed passkey ACR documentation.

If a user has more than one authentication method available that comply with the requested ACR, the Mobile ID OP will use the following preference (note, all authentication methods are equally billed):

Prio	Condition (User Mobile ID Account Status)	AL "any" choice
1	Active Mobile ID SIM card	Mobile ID SIM
2	Inactive Mobile ID SIM card & Inactive Mobile ID App	Mobile ID SIM (Account Recovery)
3	Unknown SIM card & Active Mobile ID App	Mobile ID App
4	Unknown SIM card & Inactive Mobile ID App	AL2: One-Time-Password SMS AL3: Mobile ID App (Account Recovery) AL4: Mobile ID App (Account Recovery)

WARNING

If your client attempts to request an ACR that is not available with your current Mobile ID contract, an OIDC error mid_sec_2020 ("unauthorized acr_values used in request", see Error Scheme) is returned.

Please check with your commercial contact or via Backoffice.Security@swisscom.com if you are interested in ACR values that are listed in the table above but currently not configured for your Mobile ID OIDC account.

MID SN Check – AL4 Guide

Using an ACR value of Authentication Level 4 will provide the highest and most secure authentication level.

The use of such ACR will require the Relying Party to always provide the Mobile ID's serial number via the login_hint authorization request parameter, if there is no LDAP configured. If an LDAP is configured, the Mobile ID server will lookup the user's serial number on the LDAP. The Mobile ID authorization server will compare the serial number with the serial number of the authentication response.

The authentication will be successful if the serial numbers match. A serial number mismatch will result in an authentication failure.

An account recovery (e.g., activate Mobile ID App) is supported and will result in a successful authentication if a valid user restore option was available and used during the recovery process.

INFO

The Relying Party must implement its own Mobile ID user registration process to fetch and store the user's current Mobile ID serial number value. Technically, the best way to retrieve the user's current Mobile ID serial number is by starting an authorization request using authentication level 3 (for example mid_al3_any) and scope mid_profile, so that the Relying Party will retrieve the claim mid_profile_serial.

Example Authorization Code Request

HTTP/1.1 302 Found
Location: https://m.mobileid.ch/oidc/authorize?
          response_type=code
          &scope=openid%20auth_basic
          &client_id=s6BhdRkqt3
          &state=af0ifjsldkj
          &redirect_uri=https%3A%2F%2Fclient.example.org%2Fcb

Authorization Code Response

The response to the authorize request will be an HTTP redirect that results in an HTTP GET request to the redirect_uri that was provided for the authorization code request with the following parameters:

Parameter	Value
code	WILL contain the authorization code
state	WILL contain the state
iss	WILL contain the issuer of the authorization code: https://openid.mobileid.ch

WARNING

The authorization code is by default only valid for 10 seconds after it has been issued.

Example Authorization Code Response

HTTP/1.1 302 Found
Location: https://client.example.org/cb?
          code=SplxlOBeZQQYbYS6WxSbIA
          &iss=https%3A%2F%2Fopenid.mobileid.ch
          &state=af0ifjsldkj

Access Token Request

The obtained authorization code (see here) can be used to receive an access token. This chapter describes how to format the access token request and which data is returned from the access token endpoint.

The OpenID Connect RFC states that there are 4 possible client authentication methods (used by clients to authenticate to the Authorization Server when using the Token Endpoint).

Mobile ID OP supports client_secret_basic or client_secret_post as client authentication method.

The access token can be obtained by performing an HTTP POST request towards the Token endpoint of the Mobile ID OP.

Endpoint	URL
Token	https://openid.mobileid.ch/token

The following query string parameters need to be embedded in the request:

Parameter	Value
grant_type	MUST be the value authorization_code
code	MUST be the authorization code you received from Mobile ID (see Authorization Code Response)
redirect_uri	MUST be the same redirect URI used in the authorization code request

Headers	Value
Authorization	Client ID and client secret encoded according to the HTTP Basic authentication scheme
Content-Type	MUST be the value application/x-www-form-urlencoded

Example Access Token Request

In this example, basic authentication is used to authenticate the client to the Mobile ID server.

POST /token HTTP/1.1
Host: openid.mobileid.ch
Content-Type: application/x-www-form-urlencoded
Authorization: Basic czZCaGRSa3F0MzpnWDFmQmF0M2JW
grant_type=authorization_code
 &code=SplxlOBeZQQYbYS6WxSbIA
 &redirect_uri=https%3A%2F%2Fclient.example.org%2Fcb

Access Token Response

After receiving and validating a valid and authorized token request from the client, the Authorization Server returns a successful response that includes:

• Access Token
• ID Token

The response is returned in the application/json media type.

The ID token is a JWT and is created (and thus signed, RS256 by default) by the Authorization Server itself.

Authentication Method Reference (AMR)

Authentication Method Reference (AMR) is an attribute within the OpenID Connect Identity Token. The AMR claim makes statements about the authentication method that was used (including additional factors such as geolocation).

Included Excluded

amr_values	Authentication Method				Remarks
	SIM	App	OTP	Passkey
mid_app
mid_geo
mid_otp
mid_sim
mid_sms
phr					Standard AMR "Phishing-Resistant". Only for ACR mid_al4_passkey.
hwk					Standard AMR RFC 8176 "Hardware Key"

INFO

The AMR can be helpful in case the client requests an ACR with an "any" value, such as mid_al3_any (see section ACR). Since there are multiple authentication methods that comply with such ACR, the client will know from the AMR what authentication method the user actually used for the sign-in.

Passkey-specific AMR values: phr (Phishing-Resistant, only for mid_al4_passkey) and hwk (Hardware Key, RFC 8176). The mid_hwk AMR has been deprecated in favor of the standard hwk value. See Passkey Authentication for details.

Example Access Token Response

HTTP/1.1 200 OK
Content-Type: application/json
{
  "access_token": "eyJraWQiOiJDWHVwIiwidH",
  "scope": "phone openid profile mid_location",
  "id_token": "eyJraWQiOiJDWHVwIiwiYWxnIj",
  "token_type": "Bearer",
  "expires_in": 600
}

TIP

The content of the access token is meant for consumption by the /userinfo endpoint where the client can give the token to get the user consented claim values. The access token is not meant to convey information to the client or be peeked into by the client, only to the accessed protected resources.

User Info Request

The /userinfo endpoint is an OAuth 2.0 protected resource of the Mobile ID server where client applications can retrieve consented claims, or assertions, about the logged in end-user.

Clients must present a valid access token (of type bearer) to retrieve the UserInfo claims. Only those claims that are scoped by the token will be made available to the client.

The user info can be obtained by performing an HTTP GET or HTTP POST request towards the User Info endpoint of the Mobile ID server.

Endpoint	URL
User Info	https://openid.mobileid.ch/userinfo

The following parameters should be added:

Headers	Value
Authorization	MUST contain the Bearer 'Access-Token'

Example User Info Request

GET /userinfo HTTP/1.1
Host: openid.mobileid.ch
Authorization: Bearer sa7Aebo6Ookoo0oh

Refresh Request

A request to the Token Endpoint can also use a Refresh Token by using the grant_type value refresh_token.

To refresh an Access Token, the Client MUST authenticate to the Token Endpoint using the authentication method registered for its client_id. The Client sends the parameters via HTTP POST to the Token Endpoint using Form Serialization.

Endpoint	URL
Token	https://openid.mobileid.ch/token

The following query string parameters need to be embedded in the request:

Parameter	Value
grant_type	MUST be the value refresh_token
client_secret	MUST be your client secret
refresh_token	MUST be your refresh token
scope	MUST be the scope

Headers	Value
Content-Type	MUST be the value application/x-www-form-urlencoded

Example Refresh Request

POST /token HTTP/1.1
Host: openid.mobileid.ch
Content-Type: application/x-www-form-urlencoded

client_id=s6BhdRkqt3
 &client_secret=some_secret12345
 &grant_type=refresh_token
 &refresh_token=8xLOxBtZp8

Refresh Response

Upon successful validation of the Refresh Token, the response body is the Token Response.

Example Refresh Response

HTTP/1.1 200 OK
Content-Type: application/json
Cache-Control: no-store
Pragma: no-cache

{
 "access_token": "TlBN45jURg",
 "token_type": "Bearer",
 "refresh_token": "9yNOxJtZa5",
 "expires_in": 3600
}

Error Scheme

The Mobile ID authorization service implements an error code scheme, in which various errors are reported back to the Relying Party (client) together with a human-friendly message, a unique error code and the trace-id of the session.

All fault responses contain an errorCode-field and a description-field. The description contains a structure as follows:

mid_<Category><Code><Trace> - <Message>

Example fault response:

{
  "errorCode" : "unauthorized_client",
  "description" : "mid_sec_2010_A9W1GLUM - Unauthorized scopes used in request"
}

Description of the structure details:

Component	Description
mid	Schema prefix for codes that belong to Mobile ID
<Category>	One of: • req = issues with request validation • sec = security issues with the request • auth = issues with user authentication or activation • sys = system-related issues such as internal errors
<Code>	An error code specifically related to the category
<Trace>	The trace/session ID uniquely created for that authentication flow. This value is the same as the one printed on all internal log messages + the same ID as the one shown on user interaction (e.g., Session-ID in the authentication message).
<Message>	The human-friendly message explaining the problem

Error Code Table

This table presents all the error codes that are currently implemented.

OIDC error	Code	Human-friendly text / Description
invalid_request	mid_req_1010	Invalid acr_values parameter, expected one single value
invalid_request	mid_req_1020	Invalid value received for acr_values
invalid_request	mid_req_1030	Invalid ui_locales parameter, expected one single value
invalid_request	mid_req_1040	Invalid value received for ui_locales
invalid_request	mid_req_1050	Invalid login_hint, empty hits are not allowed
invalid_request	mid_req_1060	Invalid login_hint, AL4 cannot be used with enabled manual MSISDN input
invalid_request	mid_req_1070	Invalid MSISDN value in login_hint
invalid_request	mid_req_1080	Duplicated MSISDN value in login_hint
invalid_request	mid_req_1090	Invalid SN value in login_hint
invalid_request	mid_req_1100	Invalid login_hint JSON content
invalid_scope	mid_req_1110	Invalid scopes in request
invalid_request	mid_req_1120	AL4 requested but login_hint is empty
invalid_request	mid_req_1130	Invalid request, missing query string
invalid_request	mid_req_1140	Invalid keyring ID in login_hint
invalid_request	mid_req_1150	Invalid login_hint, AL4 passkey requested but keyring ID is empty
invalid_request	mid_req_1900	Invalid client request, check request parameters
unauthorized_client	mid_sec_2010	Unauthorized scopes used in request
unauthorized_client	mid_sec_2020	Unauthorized acr_values used in request
unauthorized_client	mid_sec_2030	Unauthorized parameters used in request
access_denied	mid_auth_3010	Authentication rejected by resource owner or authorization server
access_denied	mid_auth_3011	Authentication rejected by resource owner or authorization server. (1) Number-Matching successful and (2) MID request cancelled by the user
access_denied	mid_auth_3012	Authentication failed as user did not respond. (1) Number-Matching successful and (2) MID requested timed out
access_denied	mid_auth_3013	Authentication failed due to number mismatch. (1) Number-Matching failed and (2) MID request successful
access_denied	mid_auth_3014	Authentication rejected by resource owner or authorization server. (1) Number-Matching failed and (2) MID request cancelled by the user
access_denied	mid_auth_3015	Authentication failed as user did not respond. (1) Number-Matching failed and (2) MID request timed out
access_denied	mid_auth_3020	Claims sharing rejected by resource owner or authorization server
access_denied	mid_auth_3025	Signature CMS data validation failed
access_denied	mid_auth_3030	Mobile ID serial number validation failed
access_denied	mid_auth_3040	Country (geo-location) validation failed
access_denied	mid_auth_3050	MSISDN ownership verification failed
access_denied	mid_auth_3060	Mobile ID account activation failed
access_denied	mid_auth_3065	Mobile ID app account activation not completed in time
access_denied	mid_auth_3070	Mobile ID SIM card required for this authentication
access_denied	mid_auth_3080	No authentication method available
access_denied	mid_auth_3090	Authentication via SMS OTP failed
access_denied	mid_auth_3100	Geo accuracy limit validation failed
access_denied	mid_auth_3110	Geo device confidence score limit validation failed
access_denied	mid_auth_3120	Geo location confidence score limit validation failed
access_denied	mid_auth_3125	Geofencing policy violated for referenced AP ID
access_denied	mid_auth_3300	Authentication failed; user did not respond
access_denied	mid_auth_3310	Authentication failed; user is busy with another authentication
access_denied	mid_auth_3320	Authentication failed; provided LDAP credentials were invalid
access_denied	mid_auth_3330	Authentication failed; mandatory LDAP attribute is missing
access_denied	mid_auth_3340	Authentication failed; LDAP server communication exception
access_denied	mid_auth_3350	Authentication failed; LDAP (OIDC) account is time locked
access_denied	mid_auth_3400	Authentication failed; generic LDAP exception
access_denied	mid_auth_3500	Authentication failed; passkey keyring mismatch
access_denied	mid_auth_3900	Authentication failed for other reasons
invalid_request	mid_auth_4000	Invalid dtbd parameter used in request
server_error	mid_sys_9900	Internal server error

Tokens

This table provides details on OIDC and OAUTH tokens and how the Relying Party should manage them.

Token	Type	TTL	Revocable	Refreshable	Validation	Storable	Usage
Access Token	bearer	60 min	no	yes	yes	no	for calling userinfo
Authorization Code	string	2 min	no	no	no	no	For obtaining the access_token, the id_token and refresh_token
ID Token	JWT	60 min	no	yes	yes	no	Proof of IdP's authentication. Expired ID tokens should never be accepted for processing
Refresh Token	bearer	configurable per client	yes	yes	no	yes	for obtaining new valid refresh_token, access_token and id_token
