Annexes

RADIUS-related RFCs

The following list contains a set of RFCs that cover the various aspects of the RADIUS protocol and that will come in handy for implementing the solution outlined in this document:

RFC	Title
RFC 2865	Remote Authentication Dial-In User Service (RADIUS)
RFC 2866	RADIUS Accounting
RFC 2867	RADIUS Accounting Modifications for Tunnel Protocol Support
RFC 2868	RADIUS Attributes for Tunnel Protocol Support
RFC 2869	RADIUS Extensions
RFC 3162	RADIUS and IPv6
RFC 3575	IANA Considerations for RADIUS
RFC 3579	RADIUS Support for Extensible Authentication Protocol
RFC 3580	IEEE 802.1X RADIUS Usage Guidelines
RFC 5080	Common RADIUS Implementation Issues and Suggested Fixes
RFC 6158	RADIUS Design Guidelines
RFC 6572	RADIUS Support for Proxy Mobile IPv6
RFC 6613	RADIUS over TCP (updated by RFC 7930)
RFC 6614	Transport Layer Security (TLS) Encryption for RADIUS
RFC 6929	RADIUS Protocol Extensions
RFC 7268	RADIUS Attributes for IEEE 802 Networks
RFC 7930	Larger Packets for RADIUS over TCP
RFC 8044	Data Types in RADIUS
RFC 2607	Proxy Chaining and Policy Implementation in Roaming

RADIUS Testing Tools

For testing a running instance of the RIG service (or any other RADIUS server), the following tools can be used.

Radclient

The Radclient is a small RADIUS client program that can be used from the command line to send RADIUS packets and print the received responses. Input data can be given via program arguments or with a local configuration file.

It can be used like this:

echo "User-Name = test" | /usr/local/bin/radclient localhost:1812 auth s3cr3t

echo "User-Name=test,User-Password=mypass,Framed-Protocol=PPP" | \
  /usr/local/bin/radclient localhost:1812 auth s3cr3t

echo "Message-Authenticator = 0x00" | /usr/local/bin/radclient localhost:1812 auth s3cr3t

Testing a RIG Instance

The following examples show how to use radclient to test a running RIG instance specifically.

Without LDAP — the MSISDN is provided as part of the User-Name:

echo "User-Name=<MyMobileNumber>@<mycompany.com>,NAS-Identifier=<ch_mycompany>" | \
  radclient -c 1 -r 1 -x -t 30 <server-ip> auth <shared-secret>

With LDAP — the RIG service retrieves the user's mobile number via LDAP:

echo "User-Name=<username>,User-Password=<user-password>,NAS-Identifier=<ch_mycompany>" | \
  radclient -c 1 -r 1 -x -t 30 <server-ip> auth <shared-secret>

OTP (SMS) challenge-response — if the authentication falls back to OTP via SMS, you will receive an Access-Challenge response that includes a State value. You must respond with another Access-Request that includes the OTP as User-Password and the retrieved State value:

echo "User-Name=<MyMobileNumber>@<mycompany.com>,User-Password=<otp>,State=<state>,NAS-Identifier=<ch_mycompany>" | \
  radclient -c 1 -r 1 -x -t 30 <server-ip> auth <shared-secret>

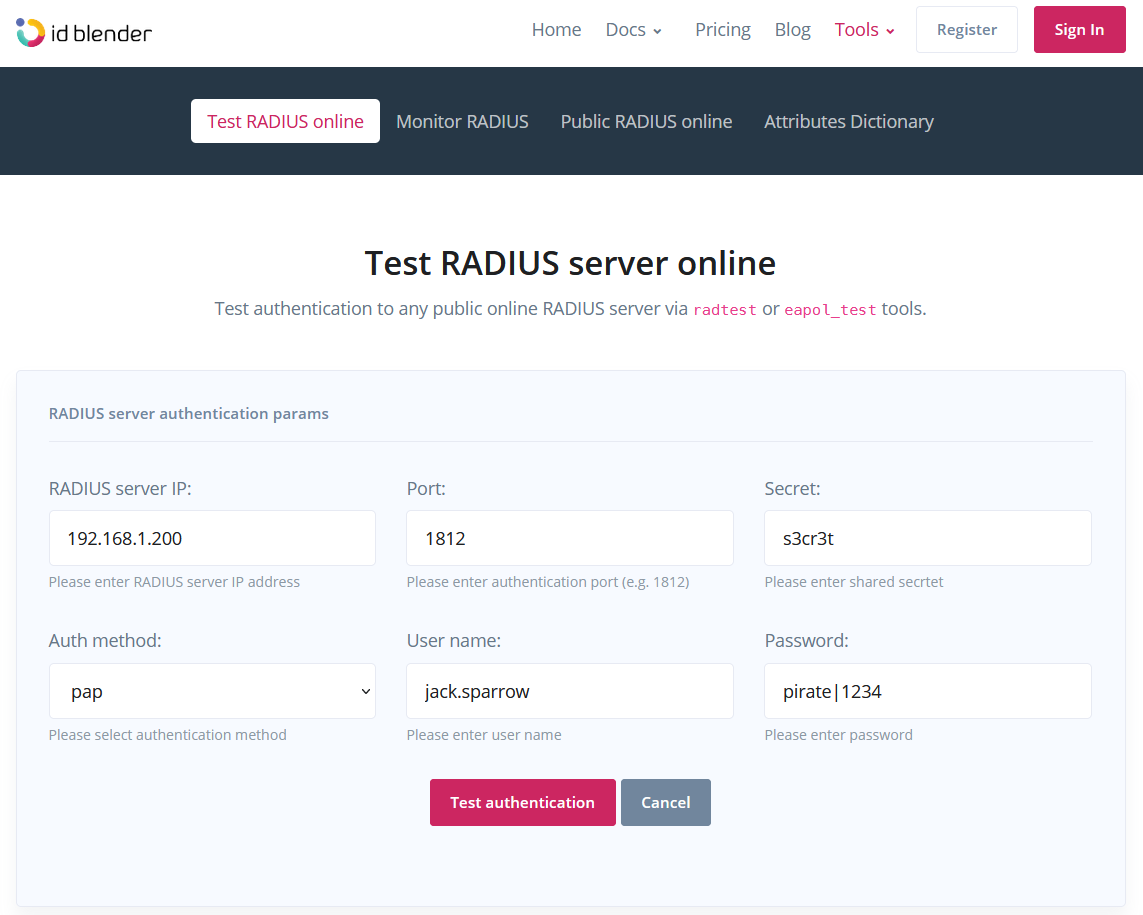

RADIUS Online Test

The idBlender company provides a free online web application that functions as a RADIUS client. It uses a backend service to perform the actual RADIUS request (so it is not the browser that sends the RADIUS requests, but a backend service) and can be used to test publicly available RADIUS servers.

Here is a screenshot from the application:

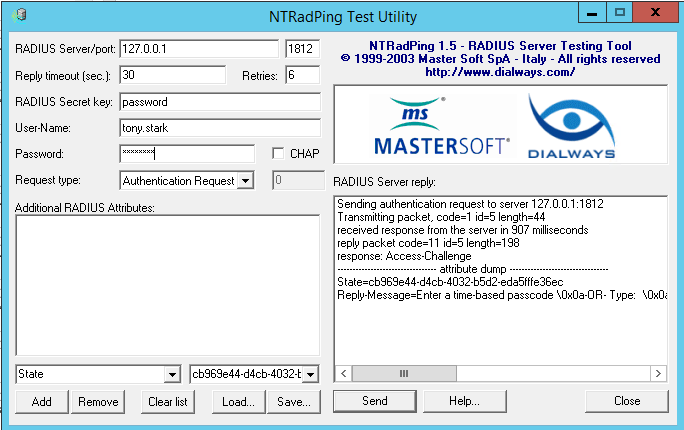

NTRadPing Test Utility

The NTRadPing application is a Windows desktop application that can be used for testing a RADIUS server. Since it runs from a local machine, it can easily test any internal/private RADIUS service.

Here is a screenshot from the application:

Other Tools

There are other tools that could come in handy during the development and testing phases of the RIG service. For example, the Simple Radius Test Tool is an ad-supported Android application that functions as a RADIUS client, and RadPerf is a load testing tool for RADIUS servers.
